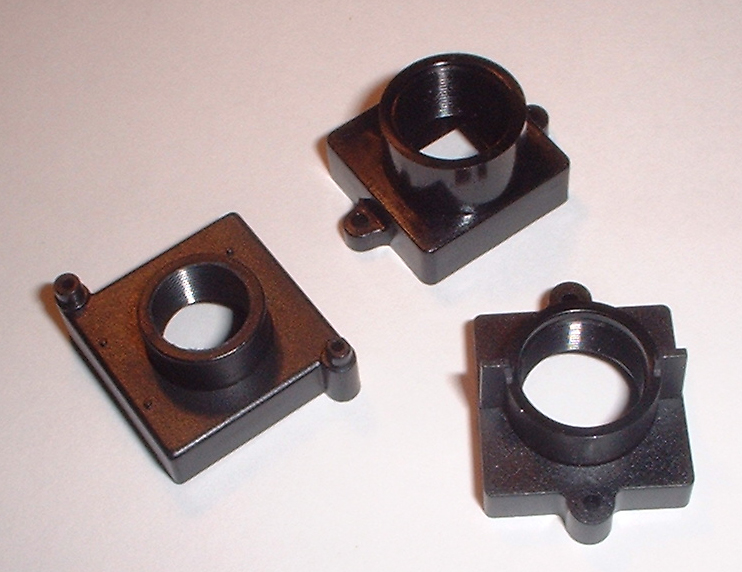

Lens holders are designed to position miniature lenses over CCD/CMOS imagers with high degree of accuracy.  Lens holder must keep the lens optic axis centered on the active area of the imager.  It must also keep the lens axis perpendicular to the imager surface. Some lens holders also provide special features for holding IR cut-off filters and optical low-pass filters. Lens holders are precision-molded with special plastic materials.


PN Description Thread Centered Height UnitPrice OrderOnline
          $  Order
CMT002 Lens holder, M12x0.5, 12.5, off-set M12x0.5 No 12.5 $6 Order
CMT0805-1005 Lens thread adapter: M8x0.5 to M10x0.5 M8x0.5 to M10x0.5 Yes 5 $7.5 Order
CMT0805-1205 Lens thread adapter: M8x0.5 to M12x0.5 M8x0.5 to M12x0.5 Yes 5 $7.5 Order
CMT0835-1005 Lens thread adapter: M8x0.35 to M10x0.5 M8x0.35 to M10x0.5 Yes 5 $7.5 Order
CMT0835-1205 Lens thread adapter: M8x0.35 to M12x0.5 M8x0.35 to M12x0.5 Yes 5 $7.5 Order
CMT1005-1205 Lens thread adapter: M10x0.5 to M12x0.5 M10x0.5 to M12x0.5 Yes 6 $7.5 Order
CMT103 Lens holder, M12x0.5, 16.2, centered M12x0.5 Yes 16.2 $6 Order
CMT107 Lens holder, M12x0.5, 15.5, centered M12x0.5 Yes 15.5 $6 Order
CMT1205-C Lens thread adapter: M12x0.5 to C- or CS- mount, aluminum M12x0.5 to 1" x 32tpi Yes 10 $15 Order
CMT1205-EXM-IRC21 Day/Night exchanger for Pixim chipsets, changes IRC21 with AR window, integrated M12x0.5 lens mount, PC, PN xref: M12-EXM-IRC21 M12x0.5 No 18.5 $35 Order
CMT746 Lens holder, M8x0.35, centered **ideal for DSL746** M8x0.35 Yes 7.1 $6 Order
CMT756 Lens holder, M7x0.35, centered **ideal for DSL756** M7x0.35 Yes 3.34 $6 Order
CMT756-IRC30 Lens holder with integrated IR cut-off filter, IRC30, M7x0.35, centered **ideal for DSL756** M7x0.35 Yes 3.34 $6 Order
CMT757 Lens holder, M5x0.35, centered **ideal for DSL757** M5x0.35 Yes 3.15 $6 Order
[1/2]
