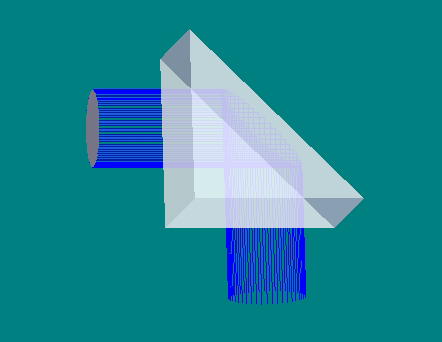

Right-angle mirrors are made from right-angle prisms by applying an enhanced
AL coating on the hypotenuse of the prism. This allows the prism to be used as
either an external or internal reflector with a wide range of reflection angle.
General Specifications:
| Parameter |
Value |
| Material |
BK7 |
| Effective aperture |
90% |
| Dimensional tolerance |
+/-0.10mm |
| Surface flatness |
l/8 |
| Angle tolerance |
+/- 30 arc sec |
| Surface quality |
20-10 |
| Perpendicularity |
+/-1 arc min |
| Protective chamfer |
45 deg |
| Coating |
Aluminized |
PN
Click for more info |
Description |
A |
B |
C |
Sample Price (1-99)
|
Volume Price |
|
RMP001
|
Right-angle prism mirror, precision grade, 3.2
|
3.2
|
3.2
|
3.2
|
$55
Order Sample |
Request Volume Quote |
|
RMP411
|
Right-angle prism mirror, precision grade, 4.0
|
4
|
4
|
4
|
$55
Order Sample |
Request Volume Quote |
|
RMP003
|
Right-angle prism mirror, precision grade, 5.0
|
5
|
5
|
5
|
$55
Order Sample |
Request Volume Quote |
|
RMP005
|
Right-angle prism mirror, precision grade, 6.4
|
6.4
|
6.4
|
6.4
|
$50
Order Sample |
Request Volume Quote |
|
RMP007
|
Right-angle prism mirror, precision grade, 8.0
|
8
|
8
|
8
|
$45
Order Sample |
Request Volume Quote |
|
RMP009
|
Right-angle prism mirror, precision grade, 10.0
|
10
|
10
|
10
|
$45
Order Sample |
Request Volume Quote |
|
RMP011
|
Right-angle prism mirror, precision grade, 12.7
|
12.7
|
12.7
|
12.7
|
$45
Order Sample |
Request Volume Quote |
|
RMP017
|
Right-angle prism mirror, precision grade, 18.
|
18
|
18
|
18
|
$55
Order Sample |
Request Volume Quote |
|
RMP019
|
Right-angle prism mirror, precision grade, 20
|
20
|
20
|
20
|
$55
Order Sample |
Request Volume Quote |
|
RMP020
|
Right-angle prism mirror, precision grade, 25
|
25
|
25
|
25
|
$60
Order Sample |
Request Volume Quote |
|
RMP021
|
Right-angle prism mirror, precision grade, 25.4
|
25.4
|
25.4
|
25.4
|
$60
Order Sample |
Request Volume Quote |
|
RMP023
|
Right-angle prism mirror, precision grade, 30
|
30
|
30
|
30
|
$70
Order Sample |
Request Volume Quote |
|
RMP029
|
Right-angle prism mirror, precision grade, 40
|
40
|
40
|
40
|
$80
Order Sample |
Request Volume Quote |
|
RMP034
|
Right-angle prism mirror, precision grade, 50
|
50
|
50
|
50
|
$115
Order Sample |
Request Volume Quote |
|
RMP035
|
Right-angle prism mirror, precision grade, 50.8
|
50.8
|
50.8
|
50.8
|
$115
Order Sample |
Request Volume Quote |
|
|
