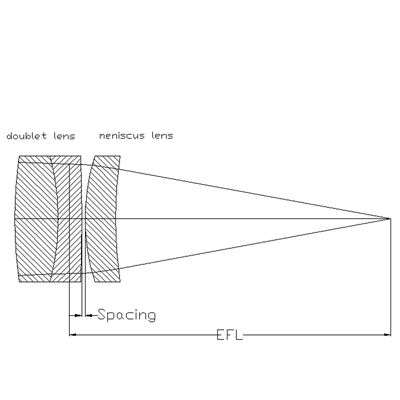

Adding an aplanatic meniscus lens to an achromatic lens can increase relative
aperture without
introducing additional spherical
aberration. This configuration is useful for collimating a diode laser
output that has large divergence angle. Achromatic lens and meniscus lens
pairs are often used in diode laser collimators.
PN
click for more info |
Description |
Diameter |
EFL(mm) |
Element1 |
Spacing
(mm) |
Element2 |
Volume Price |
|
ACP012-026
|
Achromatic doublet and mensicus lens pair, D=12.5, EFL=26.4
|
12.5
|
26.37
|
ACH012-040
|
1.000
|
MNP012-075
|
Request Volume Quote |
|
ACP012-030
|
Achromatic doublet and mensicus lens pair, D=12.5, EFL=29.7
|
12.5
|
29.66
|
ACH012-045
|
1.000
|
MNP012-085
|
Request Volume Quote |
|
ACP012-033
|
Achromatic doublet and mensicus lens pair, D=12.5, EFL=33
|
12.5
|
32.96
|
ACH012-050
|
1.000
|
MNP012-094
|
Request Volume Quote |
|
ACP015-033
|
Achromatic doublet and mensicus lens pair, D=15, EFL=33
|
15
|
32.96
|
ACH015-050
|
1.000
|
MNP015-092
|
Request Volume Quote |
|
ACP018-053
|
Achromatic doublet and mensicus lens pair, D=18, EFL=52.7
|
18
|
52.74
|
ACH018-080
|
1.000
|
MNP018-150
|
Request Volume Quote |
|
ACP025-115
|
Achromatic doublet and mensicus lens pair, D=25, EFL=115.4
|
25
|
115.36
|
ACH025-175
|
1.000
|
MNP025-332
|
Request Volume Quote |
|
ACP025-131
|
Achromatic doublet and mensicus lens pair, D=25, EFL=131.8
|
25
|
131.84
|
ACH025-200
|
1.000
|
MNP025-377
|
Request Volume Quote |
|
ACP025-050
|
Achromatic doublet and mensicus lens pair, D=25, EFL=49.4
|
25
|
49.44
|
ACH025-075
|
1.000
|
MNP025-140
|
Request Volume Quote |
|
ACP025-066
|
Achromatic doublet and mensicus lens pair, D=25, EFL=65.9
|
25
|
65.92
|
ACH025-100
|
1.000
|
MNP025-187
|
Request Volume Quote |
|
ACP025-082
|
Achromatic doublet and mensicus lens pair, D=25, EFL=82.4
|
25
|
82.40
|
ACH025-125
|
1.000
|
MNP025-235
|
Request Volume Quote |
|
ACP040-263
|
Achromatic doublet and mensicus lens pair, D=40, EFL=263.7
|
40
|
263.68
|
ACH040-400
|
1.000
|
MNP040-763
|
Request Volume Quote |
|
ACP006-013
|
Achromatic doublet and mensicus lens pair, D=6.3, EFL=13.2
|
6.3
|
13.18
|
ACH006-020
|
0.500
|
MNP006-038
|
Request Volume Quote |
|
ACP006-016
|
Achromatic doublet and mensicus lens pair, D=6.3, EFL=16.5
|
6.3
|
16.48
|
ACH006-025
|
0.500
|
MNP006-048
|
Request Volume Quote |
|
ACP006-023
|
Achromatic doublet and mensicus lens pair, D=6.3, EFL=23.1
|
6.3
|
23.07
|
ACH006-035
|
0.500
|
MNP006-067
|
Request Volume Quote |
|
ACP006-026
|
Achromatic doublet and mensicus lens pair, D=6.3, EFL=26.4
|
6.3
|
26.37
|
ACH006-040
|
0.500
|
MNP006-076
|
Request Volume Quote |
|
ACP009-018
|
Achromatic doublet and mensicus lens pair, D=9, EFL=17.8
|
9
|
17.80
|
ACH009-027
|
1.000
|
MNP009-048
|
Request Volume Quote |
|
