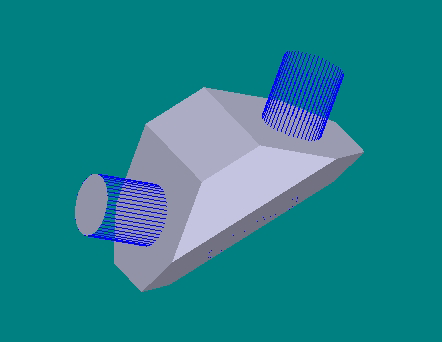

The roof or Amici prism deviates or deflects the image through an angle of 90 degrees. It is a right-angle prism whose hypotenuse has been replaced by a 90-degree TIR roof. Glass that does not contribute to the clear aperture has been trimmed away to reduce
size and weight.

  • Roof prisms are suitable for applications that demand both right-angle deflection and image erection (a combination left-to-right angle deflection and top-to-bottom inversion, equivalent to a 180 degree rotation about the optical axis).
  • These are normally uncoated for use in TIR mode.
  • Protected aluminum or internal silver coatings may be specified for roof surfaces when used in wide field applications beyond TIR limits.
  • Antireflection coated entrance and exit faces are also available.

General Specifications:

Parameter Value
Dimension tolerance: +/-0.15
Surface flatness l/2
Roof angle +/-5 arc seconds
Other angle +/-30 arc seconds
Material BK7
Surface quality 60-40
Coating Option

PN Description Volume Price
RFP001 Roof prism, 31.5x31.5x23 Request Volume Quote
